NorseSpacer
NorseSpacer M1 spacer bar delivers excellent thermal performance, making it a high-quality warm edge solution in the market. Featuring a sophisticated material mix of AGR and stainless steel, it provides high elasticity for better processing performance while ensuring stable spacer frame construction. The optimized design of material, geometry, perforation and film guarantees reliable functionality and long service life for insulating glass units.

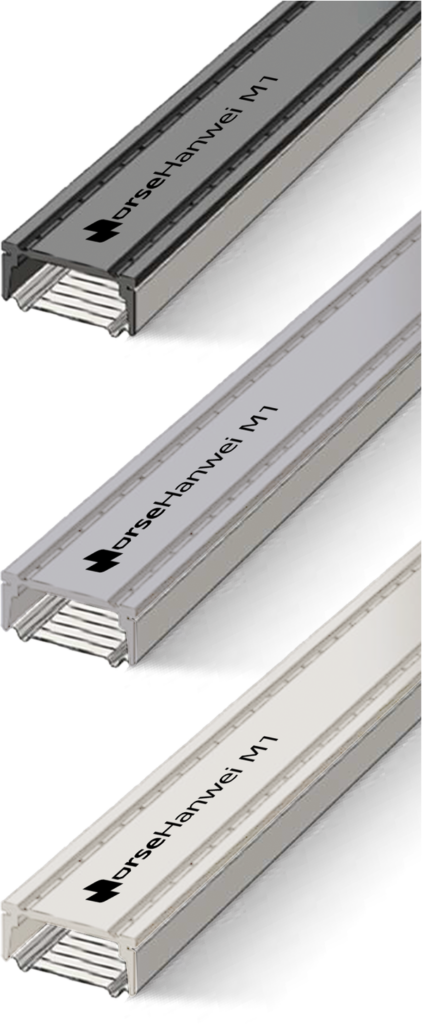

M1-AGR Composite
Specification / Test method
5000 mm/6000 mm +10/0 mm
Measuring tape
After bending, there is no rupture in the bending part
JC/T 2453-2018 6.4
≤13kg
Dynamometer
<0.05%
Test at ift Rosenheim according
to EN 1279-4:2018 Annex H
The distortion value is not greater than 1.0mm
JC/T 2453-2018 6.2
No significant color change after 4000 h
EN ISO 4892-2 CSTB certified
(French DTA)
The stomatal distribution is uniform, and the air pressure difference is >0.1Mpa
JC/T 2453-2018 6.5
λeq=0.28W/(m·K)
The equivalent thermal conductivity has been determined in accordance with the ift guide-line WA-17 engl/1 “Thermally improved spacers-Determina-tion of the equivale nt ther mal conductivity by measur ement”

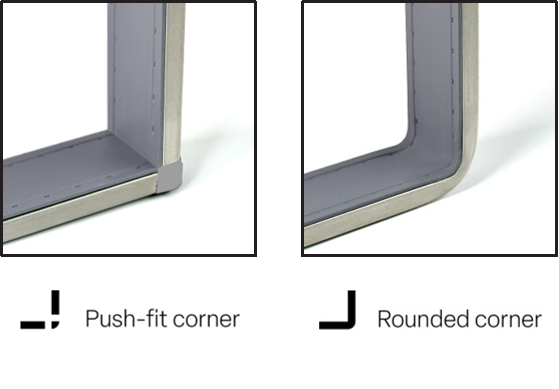

Efficient Processing Options

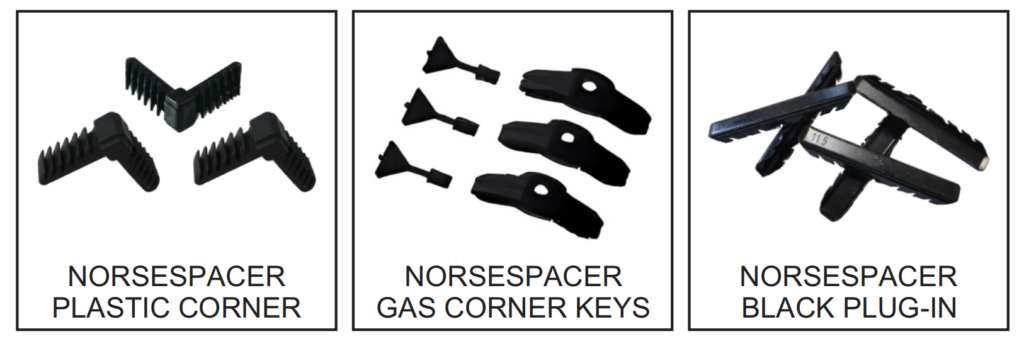

NorseSpacer M1 can be processed with various methods entirely to suit individual requirements. Apart from classic frame manufacture by hand, automated processing using bending machines is also possible. As you would expect, curves and various special shapes can also be made. Our portfolio also includes the necessary accessories.
Psi values comparison
| Window system W/m²K | Wood 1.3 | Plastic 1.2 | Wood + Aluminium 1.4 | Aluminium 1.6 | |
|---|---|---|---|---|---|
| Glazing | Double | Triple | Double | Triple | Double | Triple | Double | Triple | |
| NorseSpacer M3-ABS Glass Fiber | Ψ value | 0.040 | 0.039 | 0.040 | 0.038 | 0.044 | 0.042 | 0.049 | 0.044 |
| Uw window | 1.29 | 0.98 | 1.23 | 0.92 | 1.31 | 1.03 | 1.39 | 1.12 | |
| Temperature factor fRSi | 0.62 | 0.70 | 0.65 | 0.70 | 0.59 | 0.59 | 0.66 | 0.73 | |
| Surface temp. (Ti 20°C / To -10°C) | 10.6 | 12.5 | 11.3 | 12.9 | 9.7 | 11.9 | 11.5 | 13.3 | |
Double glazing insulating glass unit: 4-16-4 (Ug=1.1W/m2K)
Triple glazing insulatingglass unit: 4-12-4-12-4(Ug=0.7W/m2K)
Source: ift Rosenheim WA-08/3 (Warm Edge working group)/ BF Window data sheets

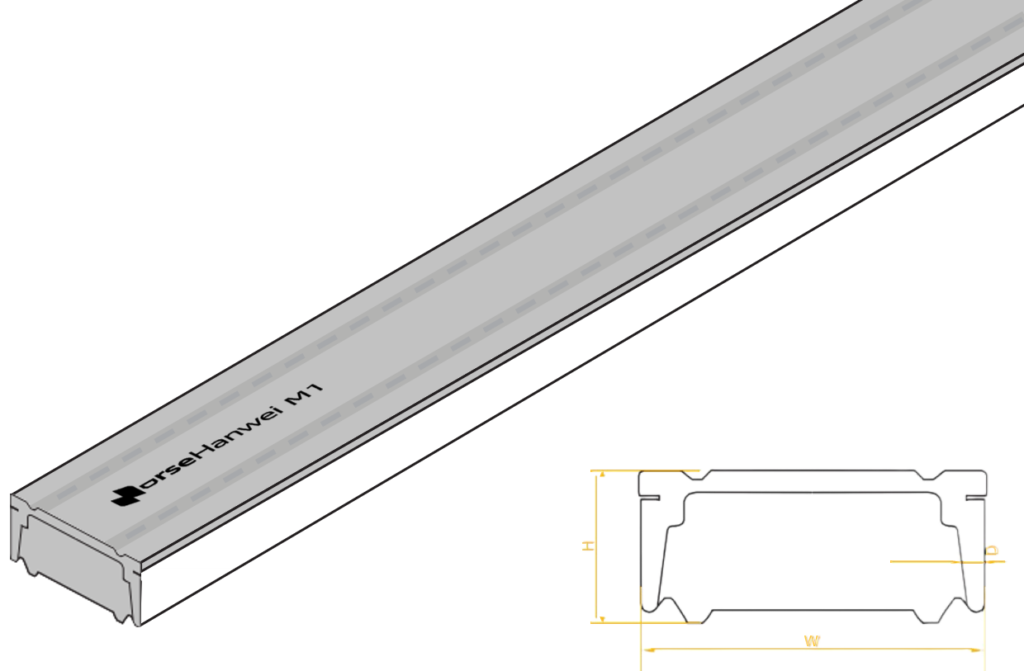

Dimensions & Colors
Downloads
Here you’ll find all relevant documents related to NorseSpacer M1-AGR Composite
Including “Standard Packaging Profiles and Accessories”,”Performance Characteristics“,”Quality Aspects“,and “Customer Focus and Warranty“
NorseSpacer M1-AGR Composite Product Data Sheet PDF
